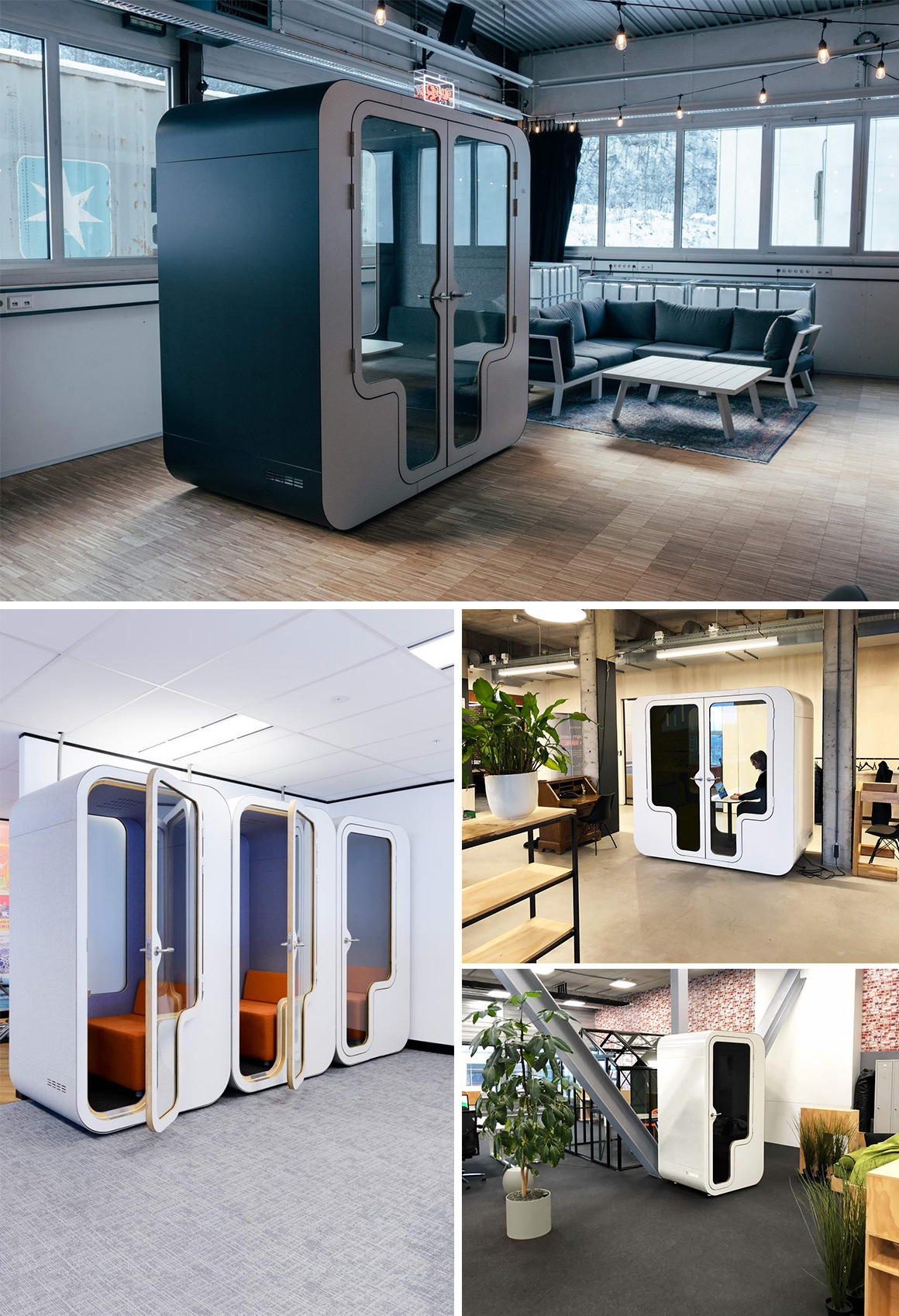

Dancoo P Family

dancoo P

Packaging and transportatinon

Net weight (kg)

405

Gross weight (kg)

497

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270 × 930 × 1330mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

404.98

Measurements

Exterior (height, width, depth)

220 × 120 × 99cm

Interior (height, width, depth)

200 × 100 × 89.8cm

Door (height, width)

204.6 × 86cm

Table (width, depth, height)

65 × 30 × 16cm

Height: 64cm from floor

Electric sockets are integrated on the table

Power consumption

Power consumption standard

3.24W while in use

LED light :1.8W

Fans in total: 1.44W

0.75W standby power consumption or up on request Power consumption option LED light: LED brightness adjustment options

Fans in total: up to14.4W

Input: 110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 1m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

dancoo 2P

Packaging and transportatinon

Net weight (kg)

671

Gross weight (kg)

774

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270 × 1020 × 1330mm

+900 × 900 × 1100mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic

foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

670.9

Measurements

Interior (height, width, depth)

220 × 220 × 120cm

Exterior (height, width, depth)

200 × 200 × 111cm

Door (height, width)

204.6 × 86cm

Table (width, depth, height)

70 × 53 × 64cm

Power consumption

Power consumption standard

6.48W while in use

LED light :3.6W

Fans in total: 2.88W

0.75W standby power consumption or up on request Power consumption option LED light: LED brightness adjustment options

Fans in total: up to 28.8W

Input: 110-240VAC, 10A, 50/60Hz

Outlets

Regular sofa:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 2m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

History

Resources

FAQ

Dancoo P Family

dancoo P

Packaging and transportatinon

Net weight (kg)

Gross weight (kg)

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

Feature

Exterior

Glass (door & rear)

Frame and table

Solid walls, roof and floor

Weight

Measurements

Exterior (height, width, depth)

Interior (height, width, depth)

Door (height, width)

Table (width, depth, height)

Power consumption

Power consumption standard

0.75W standby power consumption or up on request Power consumption option LED light: LED brightness adjustment options

Outlets

Regular table:

Output values

Output VAC (power socket):

Output USB charging:

Air Ventilation

Air Ventilation Ventilation rate:

Acoustic performance

Certificates

dancoo 2P

Packaging and transportatinon

Net weight (kg)

Gross weight (kg)

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

Feature

Exterior

Glass (door & rear)

Frame and table

Solid walls, roof and floor

Weight

Measurements

Interior (height, width, depth)

Exterior (height, width, depth)

Door (height, width)

Table (width, depth, height)

Power consumption

Power consumption standard

0.75W standby power consumption or up on request Power consumption option LED light: LED brightness adjustment options

Outlets

Regular sofa:

Output values

Output VAC (power socket):

Output USB charging:

Air Ventilation

Air Ventilation Ventilation rate:

Acoustic performance

Certificates

Dancoo P family / Color options

Standard Colors (dancoo P/S/F families)

Frame and table -White HPL standard

Exterior- RAL 9016 White Standard

Carpet standard

Interior PET felt standard

Sofa Upholstery standard

Exterior-RAL 9005 Black Standard

Frame and table -Black HPL standard

Color Options - Exterior - Powder Coat Steel (dancoo P/S/F families)

RAL 9016 White Standard

RAL 7035 Light Grey

Dancoo Green

RAL 2012 Salmon Orange
