Dancoo S Family

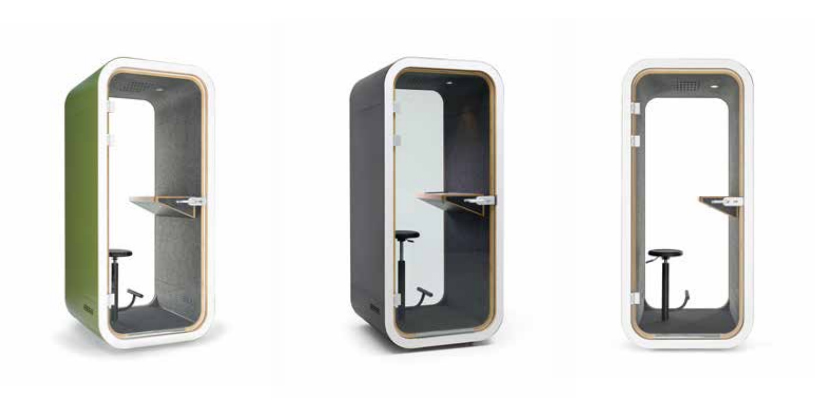

dancoo S1

Packaging and transportatinon

Net weight (kg)

360

Gross weight (kg)

452

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270×830×1130mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

359.8

Measurements

Exterior (height, width, depth)

220×100×99cm

Interior (height, width, depth)

200×80×89.8cm

Door (height, width)

204.6×84.6cm

Table (width, depth, height)

65×30×16cm

Electric sockets are integrated on the table

Power consumption

Power consumption standard

3.24W while in use

LED light:1.8W

Fans in total: 1.44W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 14.4W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 1m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

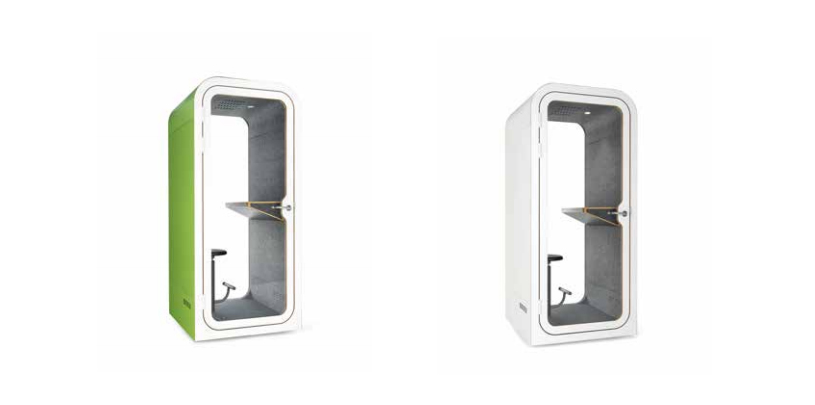

dancoo S2

Packaging and transportatinon

Net weight (kg)

336

Gross weight (kg)

428

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270×830×1130mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Tempered glass

Frame and table

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

335.6

Measurements

Exterior (height, width, depth)

220×100×99cm

Interior (height, width, depth)

200×80×89.8cm

Door (height, width)

204.6×84.6cm

Table (width, depth, height)

65×30×16cm

Electric sockets are integrated on the table

Power consumption

Power consumption standard

3.24W while in use

LED light:1.8W

Fans in total: 1.44W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 14.4W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 1m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

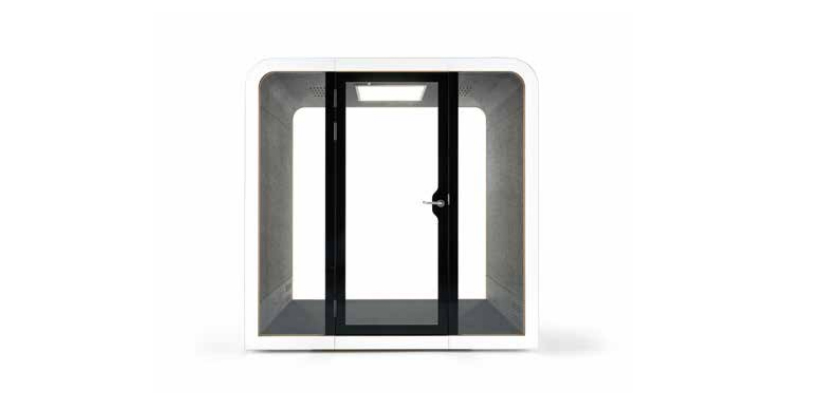

dancoo 2S1

Packaging and transportatinon

Net weight (kg)

650

Gross weight (kg)

758

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270×1100×1330mm

+900×900×1100mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood with varnish trim

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

649.9

Measurements

Exterior (height, width, depth)

220×220×120cm

Interior (height, width, depth)

200×200×111cm

Door (height, width)

198.2×84.6cm

Table (width, depth, height)

70×53×64cm

Electric sockets are integrated on the table

Power consumption

Power consumption standard

6.48W while in use

LED light:3.6W

Fans in total: 2.88W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 28.8W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 2m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

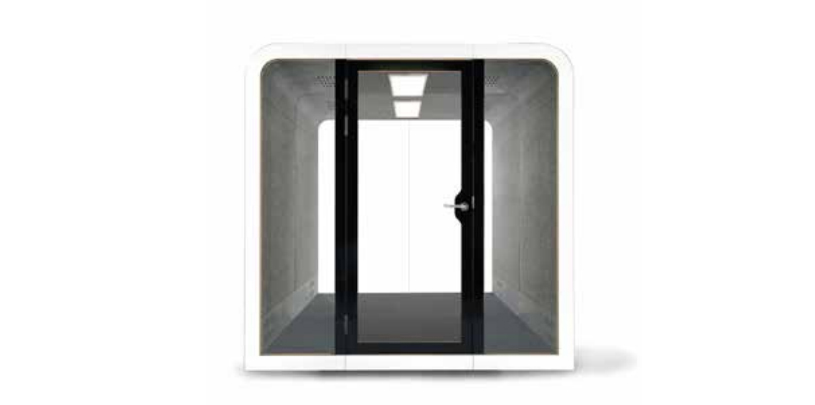

dancoo 2S2

Packaging and transportatinon

Net weight (kg)

650

Gross weight (kg)

758

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2270×1100×1330mm

+900×900×1100mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

649.9

Measurements

Exterior (height, width, depth)

220×220×120cm

Interior (height, width, depth)

200×200×111cm

Door (height, width)

220×85cm

Table (width, depth, height)

70×53×64cm

Electric sockets are integrated on the table

Power consumption

Power consumption standard

6.48W while in use

LED light:3.6W

Fans in total: 2.88W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 28.8W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 2m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

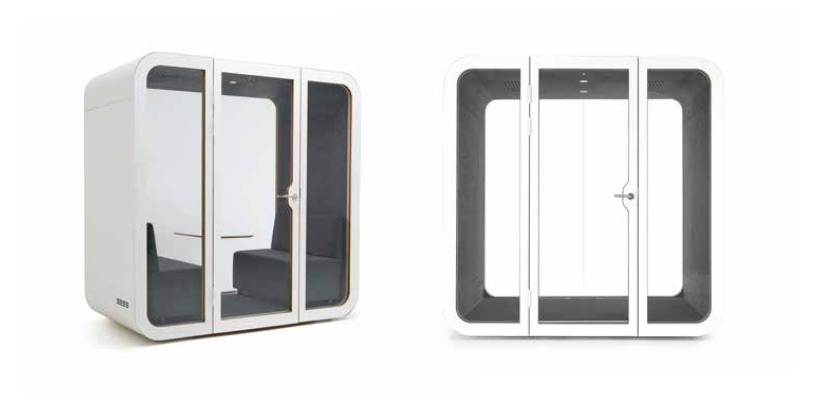

dancoo 4S1

Packaging and transportatinon

Net weight (kg)

1157

Gross weight (kg)

1327

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2470×1000×1350mm×2

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame

Laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

649.9

Measurements

Exterior (height, width, depth)

220×220×243.6cm

Interior (height, width, depth)

200×200×237.2cm

Door (height, width)

198.2×84.2cm

Table (width, depth, height)

Power consumption

Power consumption standard

12.96W while in use

LED light:7.2W

Fans in total: 5.76W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 57.6W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 4m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates

dancoo 4S2

Packaging and transportatinon

Net weight (kg)

1157

Gross weight (kg)

1327

UNIT/20GP

UNIT/40GP

UNIT/40HQ

Packaging size

2470×1000×1350mm×2

Feature

Exterior

Powder coated steel

Glass (door & rear)

Sound control laminated glass

Frame and table

Laminate on birch plywood with varnish trim

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

649.9

Measurements

Exterior (height, width, depth)

220×220×243.6cm

Interior (height, width, depth)

200×200×237.2cm

Door (height, width)

220×85cm

Table (width, depth, height)

Power consumption

Power consumption standard

12.96W while in use

LED light:7.2W

Fans in total: 5.76W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to 57.6W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 4m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request
