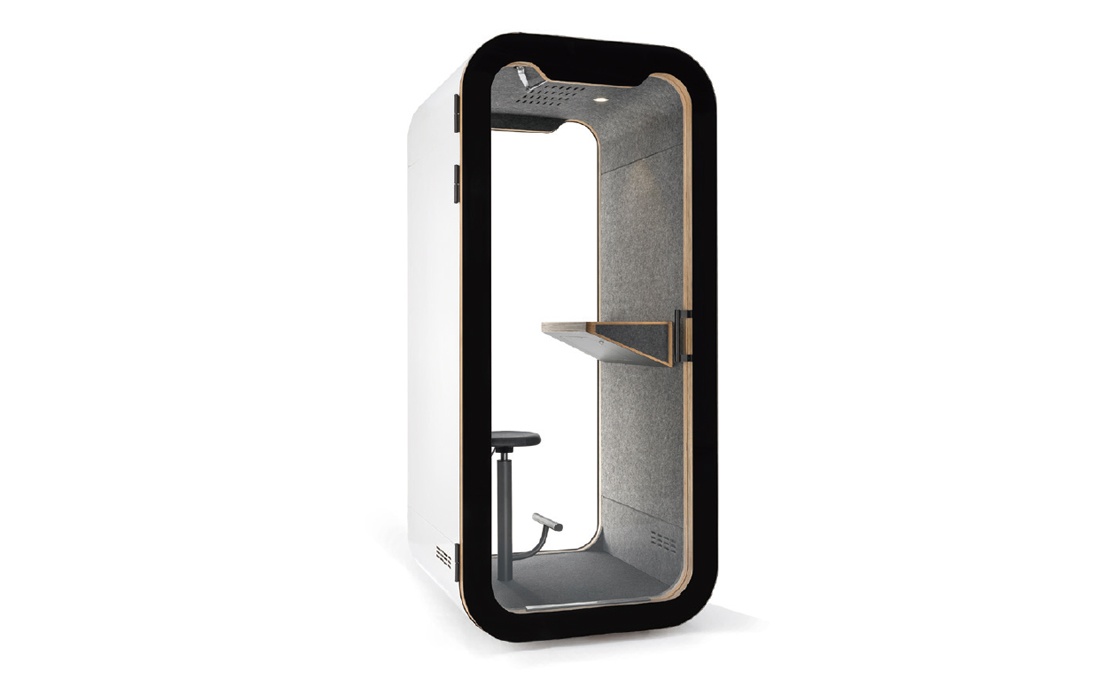

Dancoo F

Product Description

Full-enameled one-person office pod

Dancoo F is a fully automatic one-person office pod for phone and video calls. Its standout feature is the full-enameled glass door with a concealed frame, which eliminates all visible lines on the door's facade and fully embodies its minimalist design philosophy.

Excellent Quiet

It offers a guaranteed industry-leading 29.43dB speech level reduction based on ISO 23351-1 and comes with an internationally recognized third-party testing report.

Compact Design

Dancoo F occupies just 1 square meter, and its small footprint allows it to be set up or adjusted according to the current needs of any organization.

Fully Featured

Equipped with lighting, a ventilation system, a laptop desk, as well as 230V power outlets and USB sockets.

Refreshing Airflow

The efficient airflow fully refreshes the air every minute, keeping you fresh and focused.

More Personalized Options

Both the exterior and interior finishes offer numerous potential color combinations, combined with birch plywood materials, to create a more lively and soundproof office space.

Concept

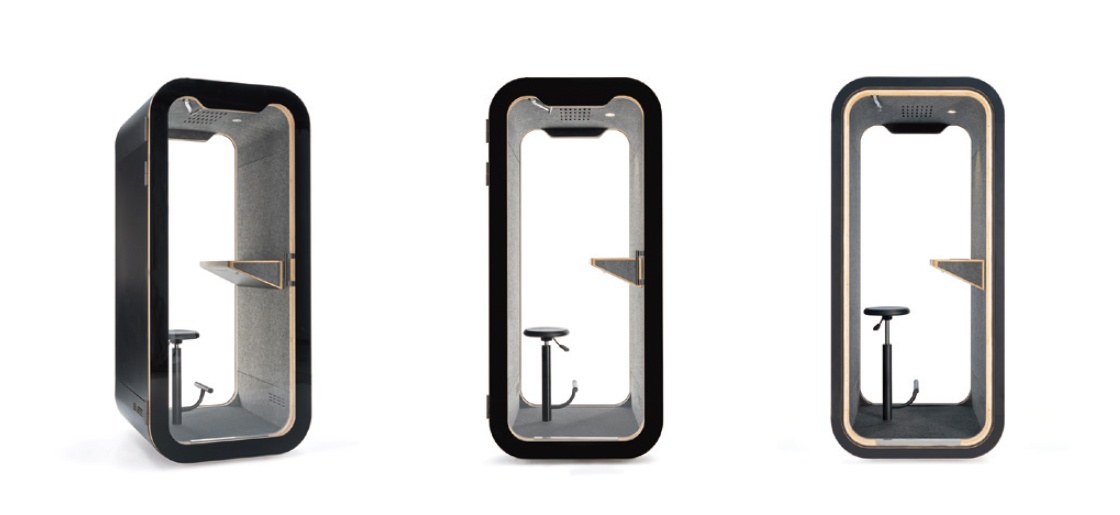

Introducing Dancoo Classical Pods

Durable and Timeless Choice

"Less is more" is the guiding principle of Dancoo's design. Unlike products that rely on numerous complex profiles and plates for on-site assembly, Dancoo Classical Pods employ a perhaps more "primitive" method by pre-assembling complex parts into simple components at the factory. This not only makes installation easier but also ensures that the structure maintains its precision even after multiple assemblies/disassembles, making it durable and as good as new for decades.

Dancoo F is the office phone booth within the Dancoo Classical Pods product line, providing a private space for phone calls and short-term work. It is easy to use, fully featured, durable, and offers a wide range of personalized options, making it adaptable to most office environments.

dancoo F

Packaging and transportatinon

Net weight (kg)

365

Gross weight (kg)

457

UNIT/20GP

12

UNIT/40GP

24

UNIT/40HQ

24

Packaging size

2270 × 840 × 1145mm

Feature

Exterior

Powder coated steel

Glass (door & rear)

Enamelled glass

Frame and table

Enamelled glass attached+laminate on birch plywood

Solid walls, roof and floor

A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt.

An anti-static and stain resistant low loop pile carpet for interior floor.

Weight

364.6

Measurements

Exterior (height, width, depth)

220 × 100 × 105cm

Interior (height, width, depth)

200 × 80 × 101cm

Door (height, width)

220 × 100cm

Table(width, depth，height)

65×30×16cm

Electric sockets are integrated on the table

Power consumption

Power consumption standard

3.24W while in use

LED light :1.8W

Fans in total: 1.44W

0.75W standby power consumption or up on request

Power consumption option

LED light: LED brightness adjustment options

Fans in total: up to14.4W

Input:

110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 1m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are            available per request

Certificates
