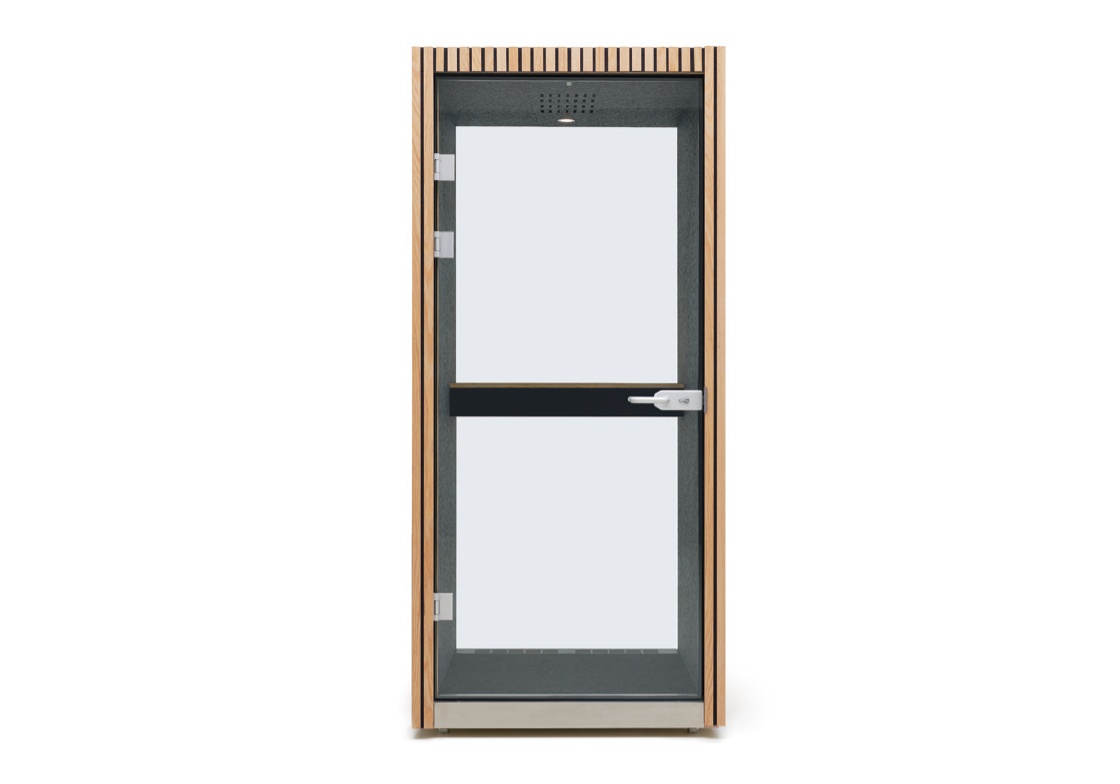

Dancoo V

Product Description

Automatic control one-person office phone booth

Dancoo V is a fully automatic one-person workstation with controlled ventilation and lighting, designed for phone calls and short-term work.

Premium Acoustic Exterior Finish

The exterior finish, crafted from high-quality acoustic materials and birch plywood strips, not only makes Dancoo V a soundproof workstation in the office but also contributes to reducing overall background noise in the office, improving the acoustic environment throughout.

Compact Design

Dancoo V occupies just 1 square meter, and its small footprint allows it to be set up or adjusted according to the current needs of any organization.

Fully Featured

Equipped with lighting, a ventilation system, a laptop table, as well as 230V power outlets and USB sockets.

Refreshing Airflow

The efficient airflow fully refreshes the air every minute, keeping you fresh and focused.

More Personalized Options

Both the exterior and interior finishes offer a multitude of potential color combinations, combined with birch plywood materials, to create a more lively and soundproof office space.

Concept

Introducing Dancoo Classical Pods

Durable and Timeless Choice

"Less is more" is the guiding principle of Dancoo's design. Unlike products that rely on numerous complex profiles and plates for on-site assembly, Dancoo Classical Pods employ a perhaps more "primitive" method by pre-assembling complex parts into simple components at the factory. This not only makes installation easier but also ensures that the structure maintains its precision even after multiple assemblies/disassembles, making it durable and as good as new for decades.

Dancoo V is the office phone booth within the Dancoo Classical Pods product line, providing a private space for phone calls and short-term work. It is easy to use, fully featured, durable, and offers a wide range of personalized options, making it adaptable to most office environments.

dancoo V

Packaging and transportatinon

Net weight (kg)

265

Gross weight (kg)

343

UNIT/20GP

15

UNIT/40GP

30

UNIT/40HQ

32

Packaging size

2270 × 1100 × 550mm

Feature

Exterior

Birch plywood with red oak veneer

Glass (door & rear)

Tempered glass

Frame and table

Laminate on plywood

Weight

265.4

Measurements

Exterior (height, width, depth)

220 × 102 × 101.8cm

Interior (height, width, depth)

200 × 84.8 × 96cm

Door (height, width)

202.8 × 87.2cm

Table (width, depth, height)

84.4 × 30 × 12cm

Height from the floor to table: 105cm

Power consumption

Power consumption standard

3.24W while in use

LED light :1.8W

Fans in total: 1.44W

0.75W standby power consumption or up on request Power consumption option            LED light: LED brightness adjustment options

Fans in total: up to14.4W

Input: 110-240VAC, 10A, 50/60Hz

Outlets

Regular table:

Power socket + optional LAN cable (extra cost)

Output values

Output VAC (power socket):

100–240 VAC, 8 A, 50–60 Hz

Output USB charging:

USB Type A socket, Type C option, Maximum combined output 18 W

Air Ventilation

Air Ventilation Ventilation rate:

More than 1m³/ minute standard

Adjustable higher ventilation options

Acoustic performance

For speech level reduction (D_S,A) and Noise isolation class (NIC), third party test reports are available per request

Certificates
